Analytical Instrument Requalification

1. Purpose and Scope

Instrument requalification strategy defines the approach used to ensure that analytical instruments remain in a validated state throughout their lifecycle following changes, repairs, or observed performance issues. This section establishes how requalification requirements are determined, scoped, and executed based on risk and impact to analytical data.

Requalification is not a routine activity. It is a trigger-based control mechanism applied when events may affect instrument performance or data integrity.

2. Definition of Requalification

Requalification is the documented process of confirming that an instrument continues to meet its intended use requirements after a defined trigger event. It may include:

  • partial verification of affected functions
  • targeted OQ testing
  • full OQ and/or PQ execution

Requalification restores documented evidence that the instrument remains suitable for use.

3. Requalification Triggers

Requalification is initiated by defined events that may affect instrument performance, measurement reliability, or the validated state. These triggers represent conditions where continued suitability for intended use cannot be assumed and must be confirmed through assessment and, where required, requalification.

3.1 Major Repairs

Major repairs involve replacement or modification of components that directly support measurement or control functions.

Examples include:

  • replacement of detectors or measurement modules
  • replacement of control boards or critical electronics
  • firmware or control system changes affecting instrument operation

These activities typically have a direct or uncertain impact on measurement performance and frequently require requalification.

3.2 Significant Maintenance

Certain maintenance activities, while planned, may affect critical performance characteristics and therefore act as requalification triggers.

Examples include:

  • pump rebuild or replacement of flow control components
  • detector lamp replacement
  • adjustments to optical or signal measurement systems

These activities may alter calibration parameters or system behavior and must be evaluated accordingly.

3.3 Out-of-Tolerance Events

Out-of-tolerance conditions indicate that the instrument has deviated from acceptable performance and may have produced unreliable data.

Examples include:

  • calibration failures
  • system suitability failures indicating drift or instability
  • unexpected deviations in analytical performance

Such events require both data impact assessment and evaluation of the need for requalification.

3.4 Change Control

Changes implemented through formal change control may affect how the instrument operates or how data is generated and processed.

Examples include:

  • software upgrades or configuration changes
  • method changes affecting instrument parameters or operation
  • integration with new systems or interfaces

The impact of changes must be assessed to determine whether requalification is required.

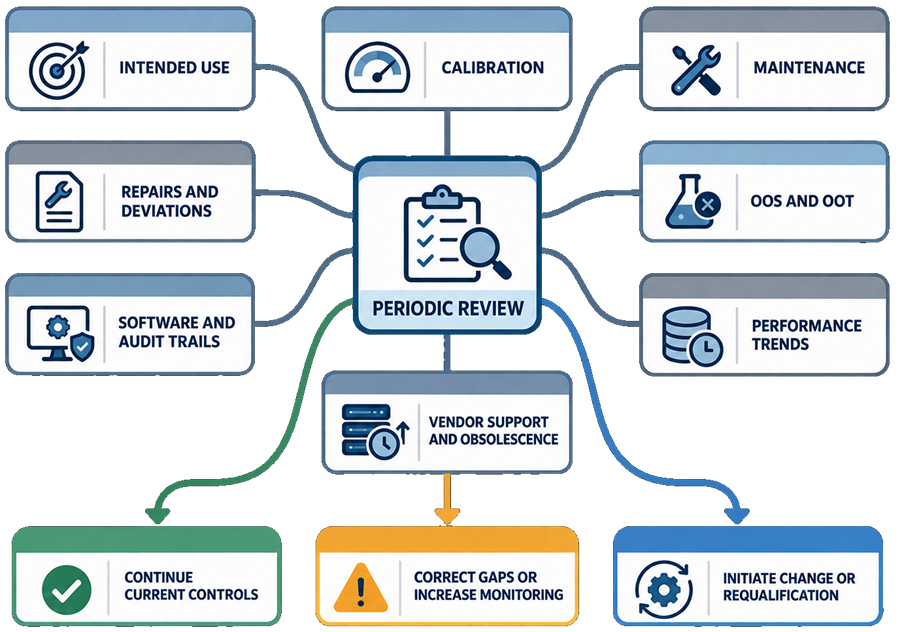

3.5 Periodic Review Findings

Periodic review provides a mechanism to identify long-term performance issues that may not be evident in isolated events.

Examples include:

  • recurring deviations or repeated minor failures
  • adverse trends in calibration or system suitability results
  • evidence of gradual performance degradation

These findings may indicate loss of control and trigger requalification.

3.6 Control Requirement

All triggers must be:

  • clearly defined within procedures
  • consistently applied across instruments and systems
  • supported by documented assessment and justification

Requalification must be initiated based on objective criteria, not discretion, ensuring a controlled and defensible approach to maintaining instrument performance and data integrity.

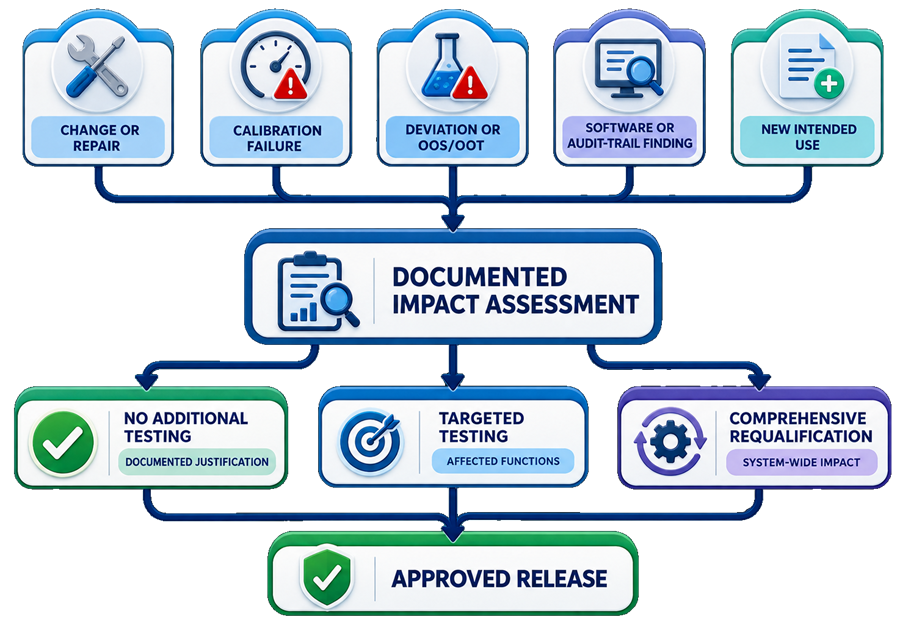

4. Risk-Based Requalification Approach

Requalification scope shall be defined through a structured, risk-based assessment that evaluates the specific impact of a triggering event on instrument measurement performance and data integrity. The objective is to ensure that requalification activities are targeted, justified, and sufficient, rather than automatically applying full requalification in all cases.

The assessment must focus on how the event affects the instrument’s ability to generate reliable analytical data. Key evaluation elements include:

  • Affected measurement functions
    Identify which functional elements of the instrument are impacted, such as flow control, temperature control, optical measurement, or signal processing. Requalification scope must be limited to functions that could be influenced by the event.
  • Impact on critical calibration parameters
    Determine whether the event could alter parameters such as accuracy, linearity, precision, response, or timing. If critical parameters are affected, verification must directly address those parameters.
  • Potential effect on analytical results
    Evaluate how changes in instrument performance could influence reportable results, including retention time, peak identification, peak shape, and quantitation accuracy.
  • Instrument complexity and interdependencies
    Consider whether the instrument consists of independent modules or tightly integrated systems. In highly integrated systems, localized changes may propagate and require broader verification.
  • Historical performance and reliability
    Review past deviations, calibration trends, and maintenance history. Recurring issues or drift may justify expanded requalification scope.

4.1 Requalification Outcomes

Based on the assessment, one of the following approaches shall be applied:

4.1.1 No Requalification

Applied when the event has no impact on measurement functions or critical parameters. In this case, documented justification is required, and the instrument may be returned to service following appropriate verification such as a functional check or system suitability.

4.1.2 Partial Requalification

Applied when specific functions or parameters may be affected. Requalification is limited to targeted testing of impacted areas, such as:

  • verification of affected calibration parameters
  • targeted functional testing
  • system suitability under defined conditions

Partial requalification must demonstrate that affected functions operate within defined acceptance criteria.

4.1.3 Full Requalification (OQ/PQ)


Applied when the impact is significant, uncertain, or affects multiple critical functions. This includes:

  • execution of full Operational Qualification
  • Performance Qualification or equivalent system suitability verification

Full requalification is required when the validated state cannot be confirmed through limited testing.

4.2 Key Principle

Requalification scope must be proportional to risk and impact. Over-testing introduces unnecessary burden, while under-testing creates risk to data integrity. The assessment must therefore ensure that requalification activities are:

  • technically justified
  • focused on critical functions
  • sufficient to confirm fitness for intended use

This approach maintains control of the validated state while ensuring efficient and defensible lifecycle management.

5. Requalification Scope Definition

Requalification scope shall be explicitly defined based on the outcome of the impact assessment and must be limited to what is necessary to demonstrate continued fitness for intended use. The scope must be function-based, not instrument-wide by default, and must directly address the parameters and functions affected by the triggering event.

Scope definition requires identification of:

  • affected subsystems or modules
  • impacted measurement functions
  • associated critical calibration parameters
  • expected effect on analytical results

Requalification activities must then be selected to verify these elements with sufficient rigor.

5.1 Function-Based Scope Determination

Requalification must be aligned with the specific function impacted rather than applied generically. Examples:

  • Flow control function affected
    → verify flow rate accuracy, stability, and repeatability
    → assess impact on retention time
  • Temperature control affected
    → verify temperature accuracy and uniformity
    → assess impact on retention time and peak shape
  • Optical measurement affected
    → verify wavelength accuracy and resolution
    → assess impact on peak identification
  • Signal measurement affected
    → verify detector response, linearity, and sensitivity
    → assess impact on quantitation accuracy

This mapping ensures that testing is directly tied to analytical performance.

5.2 Partial Requalification

Partial requalification is applied when the impact is limited to specific functions or parameters. Testing is restricted to affected areas while maintaining traceability to analytical performance. Typical activities include:

  • verification of affected calibration parameters
  • targeted functional testing of impacted subsystems
  • system suitability testing to confirm method performance

Examples:

  • pump repair → verify flow rate accuracy and retention time stability
  • detector lamp replacement → verify wavelength accuracy and detector response
  • injector repair → verify injection volume precision and repeatability

Partial requalification must demonstrate that the affected functions meet predefined acceptance criteria and do not adversely affect analytical results.

5.3 Full Requalification (OQ/PQ)

Full requalification is required when:

  • multiple critical functions are affected
  • the impact is significant or uncertain
  • system-level behavior may have changed

Activities include:

  • execution of full Operational Qualification covering all critical functions
  • Performance Qualification or system suitability testing under routine conditions

Full requalification provides comprehensive evidence that the instrument operates within defined limits across its intended operating range.

5.4 Scope Justification

The defined scope must be documented and justified. Justification should demonstrate:

  • linkage between the triggering event and affected functions
  • rationale for inclusion or exclusion of specific tests
  • alignment with risk and potential impact on data

Scope that is too narrow introduces risk. Scope that is too broad introduces unnecessary burden. The objective is to achieve targeted, defensible verification.

5.5 Acceptance Criteria and Traceability

All requalification activities must have predefined acceptance criteria linked to:

  • calibration limits
  • system suitability requirements
  • method performance expectations

Results must demonstrate that:

  • critical parameters remain within acceptable limits
  • analytical performance is not compromised

Traceability must be maintained between:

trigger event → affected function → test performed → acceptance criteria → conclusion

6. Integration with Calibration and Maintenance

Requalification must be coordinated with calibration and maintenance activities. Key principles:

  • calibration verifies specific parameters
  • maintenance restores mechanical condition
  • requalification confirms overall fitness for use

Requalification is required when calibration and maintenance alone are insufficient to demonstrate system performance.

7. Documentation Requirements

Requalification must be fully documented. Records should include:

  • trigger event description
  • impact assessment
  • defined scope and rationale
  • executed tests and results
  • deviations and resolution
  • approval for return to service

Documentation must provide clear traceability and justification.

8. Periodic Requalification Considerations

Periodic requalification may be applied for certain instruments based on risk. It may be appropriate when:

  • instrument is high criticality
  • long-term drift risk exists
  • required by internal procedures

However, periodic requalification should not replace:

  • ongoing calibration
  • preventive maintenance
  • performance monitoring

It must be justified and not applied routinely without rationale.

9. Link to Lifecycle Control

During routine operation, instrument performance is maintained through calibration, preventive maintenance, and ongoing monitoring. These activities provide continuous assurance of performance under normal conditions. Requalification is applied when this assurance is no longer sufficient and formal confirmation of system performance is required.

Within the lifecycle, requalification serves to:

  • re-establish verified instrument performance after impact events
  • confirm that critical functions continue to meet defined requirements
  • ensure continued reliability of analytical results

Requalification represents a controlled transition from a potentially impacted state back to a verified state suitable for use.
