Analytical Instrument Software Validation

Analytical instrument software controls data acquisition, processing, and storage within the laboratory environment. Its validated state ensures that analytical results remain accurate, traceable, and protected from unauthorized modification. Control of this software is essential because analytical data is used to support product release, stability evaluation, and process verification.

This section defines how analytical instrument software is maintained in a state of control through configuration management, data integrity safeguards, controlled operation, and ongoing lifecycle oversight.

1. Validation Framework and Specifications

Analytical instrument software validation is executed using a structured specification-driven approach aligned with risk-based principles. The level of rigor is scaled based on system complexity and impact on data integrity. Key elements include:

  • User Requirements Specification defining intended analytical use, data handling, and regulatory expectations
  • Functional Specification where applicable, describing system functions supporting analytical operations
  • Configuration Specification defining system setup, parameters, user roles, and method controls
  • Risk assessment used to determine validation depth and testing scope

Validation activities must demonstrate traceability between requirements, configuration, and verification.

Alignment with GAMP 5:

  • software is categorized based on complexity and supplier involvement
  • supplier documentation may be leveraged where justified
  • testing focuses on critical functions impacting data integrity and result reliability
  • lifecycle approach integrates validation with ongoing operational control

This section establishes the framework. Detailed computerized system validation methodology is addressed separately.

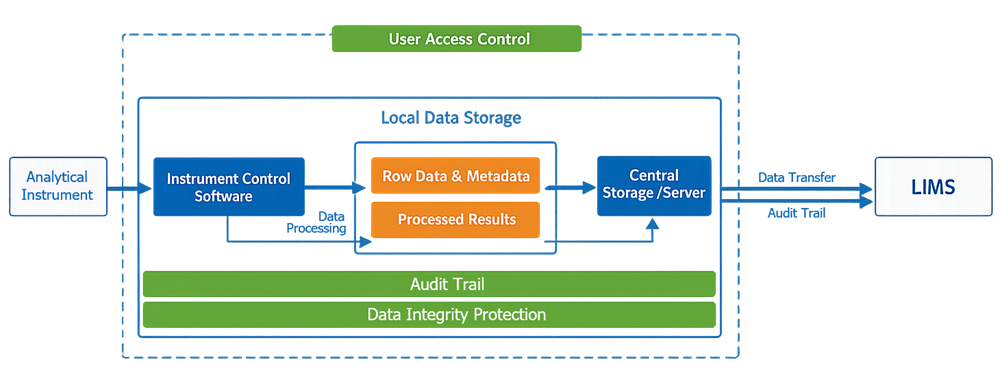

The diagram below defines the analytical instrument software environment and the flow of data from acquisition through processing, storage, and transfer to external systems. It establishes system boundaries and identifies where data integrity controls must be applied.

Analytical instrument software architecture showing data acquisition, processing, storage, and transfer to LIMS

2. Software Configuration Control

Software configuration must be established during qualification and maintained under strict control throughout the system lifecycle. Key control elements include:

  • approved software versions and builds, including patch management
  • controlled system configuration settings such as data paths, time settings, and processing parameters
  • role-based user access with restricted administrative privileges
  • controlled analytical methods and calculation parameters with versioning and change history

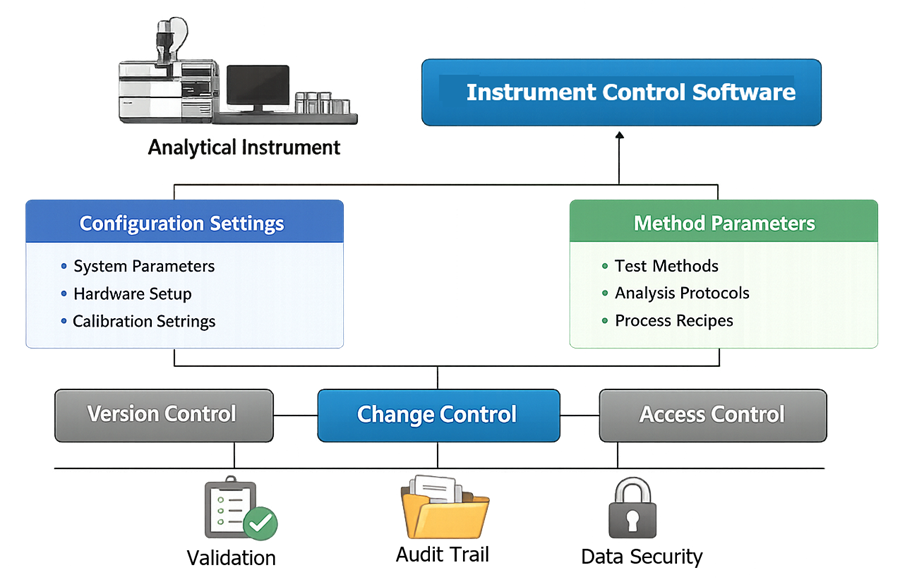

All configuration elements must be fixed under change control once the system is qualified. The diagram below illustrates the elements controlled under software configuration, including system settings, user roles, analytical methods, and calculation parameters, and shows how these elements are maintained under change control.

Configuration control structure for analytical instrument software including methods, roles, and system settings

3. Data Integrity Control

Data integrity controls ensure that analytical data remains accurate, complete, and attributable throughout its lifecycle. These controls are designed to enforce the principles of ALCOA and ALCOA+, which define expectations for reliable and defensible GxP data.

ALCOA principles require that data is:

  • attributable to a specific user
  • legible and permanent
  • recorded contemporaneously
  • original or a true copy
  • accurate

ALCOA+ extends these expectations to ensure that data is also:

  • complete, including all relevant records and metadata
  • consistent across the data lifecycle
  • enduring and protected from loss
  • available for review and inspection

Within analytical instrument software, these principles are implemented through the following control elements:

  • unique user identification and secure authentication ensuring attributable actions; shared accounts are not acceptable
  • system-generated audit trails capturing creation, modification, and deletion of data, methods, and configurations, supporting contemporaneous and traceable records
  • protection of raw data and metadata from overwrite or deletion, ensuring original and enduring records
  • controlled data reprocessing with full traceability between original and reprocessed results, preserving accuracy and transparency
  • secure data storage and retrieval ensuring that records remain complete, consistent, and available throughout the retention period

These controls ensure traceability from raw data to reported results, support detection of unauthorized or inappropriate actions, and maintain the reliability of analytical data used for decision-making. The diagram below presents the relationship between raw data, data processing, and reported results, and shows how system controls such as audit trails, user access, and data protection ensure traceability and integrity.

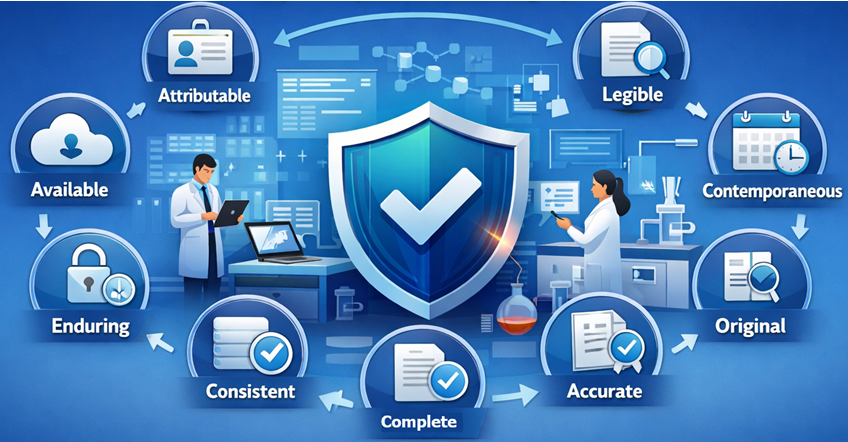

Data integrity control model showing protection of raw data, audit trail capture, and traceability

4. Operational Use Control

Operational use must be controlled to ensure that analytical activities are executed consistently and within defined boundaries. Key control elements include:

  • execution of approved analytical methods without unauthorized modification
  • controlled sequence and batch management with traceable sample identification
  • enforcement of user roles to restrict access to critical functions
  • defined data review and approval processes prior to use in decision-making

System use must prevent unauthorized changes to methods, sequences, or results.

5. Interface and Data Flow Control

Interfaces between analytical instrument software and external systems must be controlled to preserve data integrity. Key control elements include:

  • verified data transfer between instrument systems and LIMS or other repositories
  • correct mapping of sample identifiers, test parameters, and results
  • controls over manual data entry to prevent transcription errors
  • safeguards against data loss, overwrite, or duplication during transfer or processing

All data transfers must be accurate, complete, and traceable.

6. Audit Trail Review

Audit trail review is a critical control used to detect unauthorized, inappropriate, or unexplained system activity. It must be performed in direct conjunction with analytical data review to ensure that reported results are supported by compliant system execution.

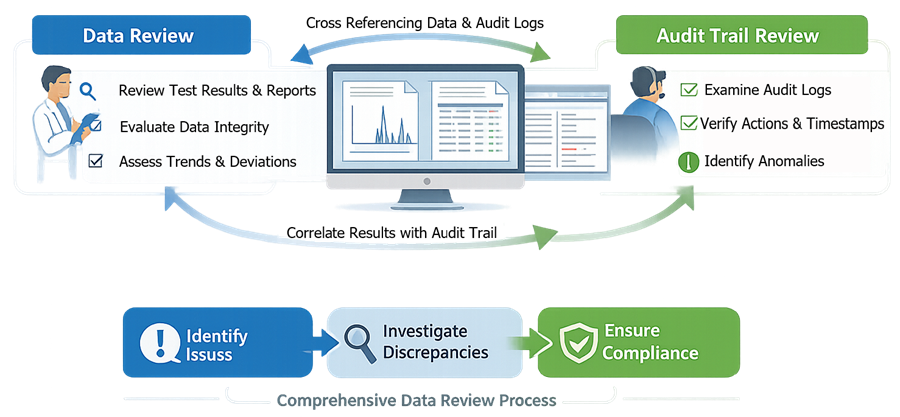

As shown in the illustration, analytical data review and audit trail review are not independent activities. They operate as an integrated process in which results, methods, and system actions are evaluated together prior to release.

Integration of audit trail review with analytical data review and release process

During analytical data review, the reviewer evaluates:

  • test results and calculated values
  • chromatograms, spectra, or raw data outputs
  • system suitability and method performance
  • trends, deviations, or atypical results

In parallel, audit trail review focuses on system-generated records of all critical actions, including:

  • method creation, modification, or selection
  • sequence setup and sample list changes
  • data acquisition events and reprocessing activities
  • user actions with associated timestamps

The integration point, as reflected in the diagram, is the correlation between analytical results and recorded system activity. Reviewers must confirm that:

  • results were generated using approved methods and configurations
  • no unauthorized or undocumented changes occurred during acquisition or processing
  • any data reprocessing is justified, documented, and traceable to original results
  • timestamps and user actions are consistent with expected workflow execution

Audit trail review must be performed at a defined frequency based on system risk and laboratory procedures. For high-impact systems, review is typically performed as part of batch or sample release.

The outcome of this combined review process includes:

  • identification of anomalies or inconsistencies
  • investigation of discrepancies between data and system activity
  • confirmation that data integrity has been maintained

Documented evidence of review must include reviewer identification, date, scope of review, and any findings or actions taken.

Analytical results may only be considered reliable when both data review and audit trail review confirm that the data was generated, processed, and reported under controlled and compliant conditions.

7. Backup and Data Retention Control

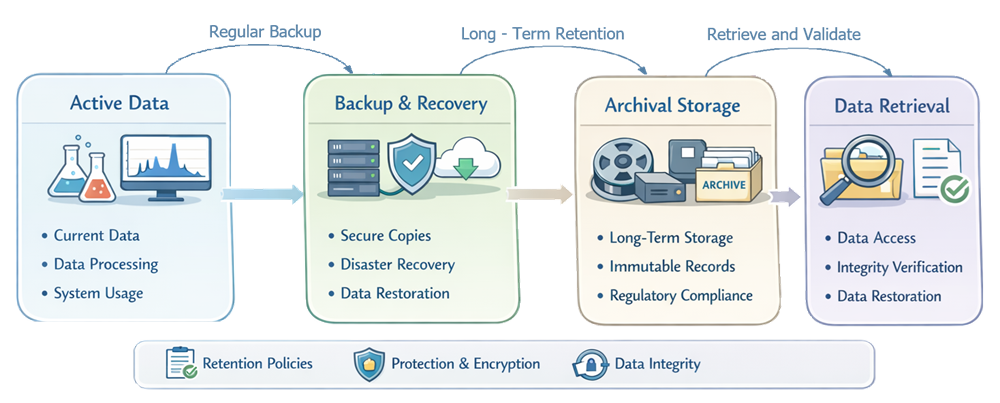

Analytical data must be protected and retained to ensure long-term availability and regulatory compliance. The diagram below illustrates the lifecycle of analytical data from active use through backup, restoration, archival, and long-term retention, ensuring continued availability and integrity of records.

Lifecycle of analytical instrument data from active use through backup, archival, and retention

Key control elements include:

  • routine backup of raw data, metadata, and analytical methods
  • periodic verification of data restoration capability
  • controlled archival of completed analyses and datasets
  • retention of records in accordance with regulatory and internal requirements

Data must remain accessible, readable, and intact throughout the retention period.

8. Change Control and Impact Assessment

All changes to analytical instrument software must be formally controlled and evaluated for impact on system functionality, data integrity, and analytical results. Change control ensures that the validated state of the system is maintained throughout its lifecycle. Changes typically fall into the following categories:

  • software updates, patches, or version upgrades
  • configuration changes, including system settings and user roles
  • analytical method and calculation parameter modifications
  • infrastructure changes affecting data storage or system environment

Each change must be subject to documented impact assessment. The assessment must determine:

  • whether the change affects data acquisition, processing, or storage
  • whether data integrity controls such as audit trail, access control, or data protection are impacted
  • whether previously generated data or historical results may be affected
  • the level of risk introduced by the change

Based on this evaluation, the required action must be defined using a risk-based approach:

  • no requalification required for changes with no impact on GxP-relevant functions
  • partial requalification for changes affecting specific functions or configurations
  • full requalification for changes impacting core system functionality or data integrity controls

Implementation of changes must include:

  • formal approval prior to execution
  • controlled testing or verification appropriate to the level of impact
  • update of configuration records and system documentation
  • confirmation that the system remains in a validated state following change

Changes to analytical methods and data processing parameters require additional scrutiny, as they may directly affect reported results. Such changes must ensure traceability between previous and updated methods and must not compromise result comparability without documented justification.

All changes must be documented, including rationale, impact assessment, actions taken, and final approval.

The system remains in a state of control only when all changes are evaluated, implemented, and verified in a manner that preserves data integrity and ensures continued fitness for intended analytical use.

9. Deviation and Incident Management

System issues and data integrity concerns must be identified, investigated, and resolved in a controlled manner. Key control elements include:

  • documentation and investigation of system errors and failures
  • evaluation of unexpected audit trail entries
  • formal handling of data integrity events
  • assessment of impact on analytical results and associated decisions

All incidents must include documented investigation and corrective actions.

10. Periodic Review and Continued Verification

Periodic review ensures that the system remains in a validated and controlled state over time. Key control elements include:

  • review of system usage against approved procedures
  • evaluation of audit trail trends for recurring issues
  • verification of backup and archival processes
  • confirmation that the system continues to meet defined requirements

Periodic review must confirm sustained compliance and identify the need for corrective actions or requalification.

Analytical instrument software remains in a state of control when configuration, data integrity, and operational use are continuously governed and verified within the laboratory lifecycle.
