Requirements Traceability for Computerized Systems
Requirements Traceability establishes and maintains the linkage between user requirements, system specifications, and verification activities. It ensures that all defined requirements are implemented and tested, and that no functionality is introduced without justification.
For computerized systems, traceability is a central control mechanism used to demonstrate completeness, consistency, and regulatory compliance throughout validation.
1. Purpose and Role in Validation
Requirements Traceability ensures that validation is systematic and complete. It:
- confirms that all URS requirements are addressed in specifications
- ensures that each requirement is verified through testing
- prevents omission of critical functionality
- supports impact assessment during changes
- provides objective evidence during audits
Traceability connects requirements, design, and testing into a controlled structure.
2. Traceability Structure
Traceability must be established through a structured linkage across validation documents.

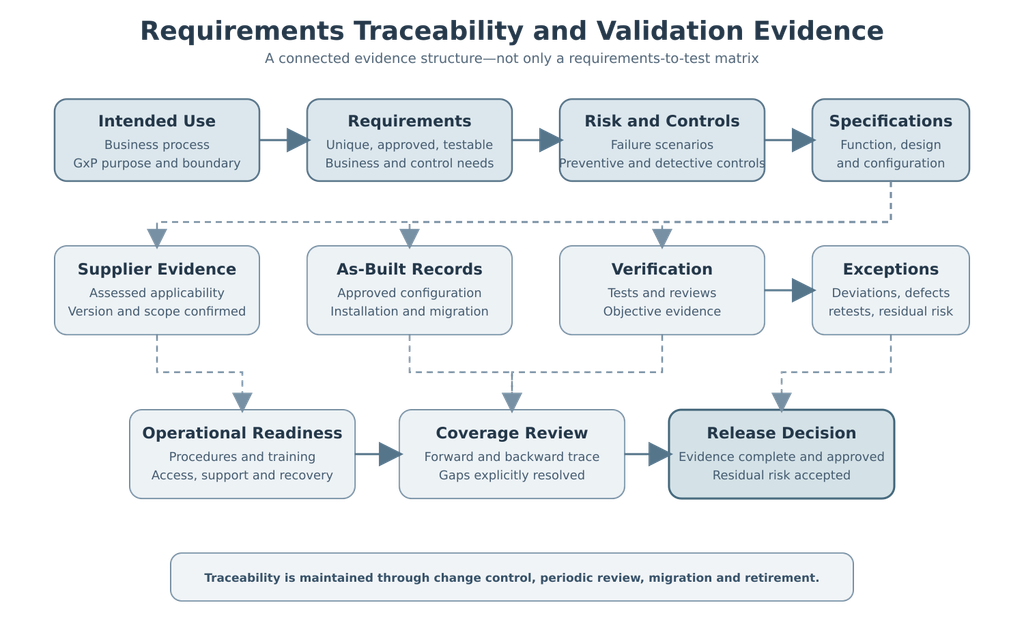

Typical structure: URS → Functional Specification → Configuration Specification → Test Case
Each requirement must be linked to:
- one or more specification elements defining its implementation
- one or more test cases verifying its correct operation
This structure ensures that all requirements are both implemented and verified.
3. Traceability Matrix
Traceability is typically maintained in a Requirements Traceability Matrix. The matrix must include:
- unique requirement identifier
- requirement description
- reference to specification elements
- reference to test cases in IQ, OQ, or PQ
- verification status
The matrix must allow clear tracking from requirement to test evidence.
The table below provides a simplified example of a Requirements Traceability Matrix illustrating linkage between requirements, specifications, and verification activities.
| URS ID | Requirement Summary | FS/Config Ref | Test Case ID | Qualification Phase | Status |
|---|---|---|---|---|---|
| URS-01 | User login control | FS-SEC-01 | OQ-SEC-01 | OQ | Pass |
| URS-02 | Audit trail | FS-DI-02 | OQ-DI-03 | OQ | Pass |
| URS-03 | Report generation | FS-RPT-01 | PQ-RPT-01 | PQ | Pass |
4. Traceability Across Qualification Phases
Traceability must define where each requirement is verified. Typical allocation:
- IQ – verification of installation and configuration elements
- OQ – verification of functional behavior, configuration, and data integrity controls
- PQ – verification under real operational conditions
Each requirement must be assigned to the appropriate qualification phase based on its nature and risk.
5. Bidirectional Traceability
Traceability must be bidirectional. This means:
- each requirement can be traced forward to specifications and tests
- each test case can be traced back to a requirement
Bidirectional traceability ensures:
- no requirement is untested
- no test is performed without justification
This prevents both gaps and unnecessary testing.
6. Level of Detail
Traceability must be maintained at an appropriate level of granularity. This includes:
- breaking down high-level requirements into testable elements
- avoiding overly broad or generic mappings
- ensuring that each requirement can be independently verified
Traceability must support direct linkage to specific test steps and expected results.
7. Integration with Risk-Based Approach
Traceability must reflect system risk. This includes:
- ensuring high-risk requirements have comprehensive verification
- mapping critical requirements to multiple test scenarios where appropriate
- prioritizing data integrity and security requirements
Risk determines the depth and rigor of traceability and testing.
8. Maintenance of Traceability
Traceability must be maintained throughout the system lifecycle. This includes:
- updating the matrix when requirements change
- reflecting changes in specifications and test cases
- maintaining alignment with system configuration
Outdated traceability invalidates validation documentation.

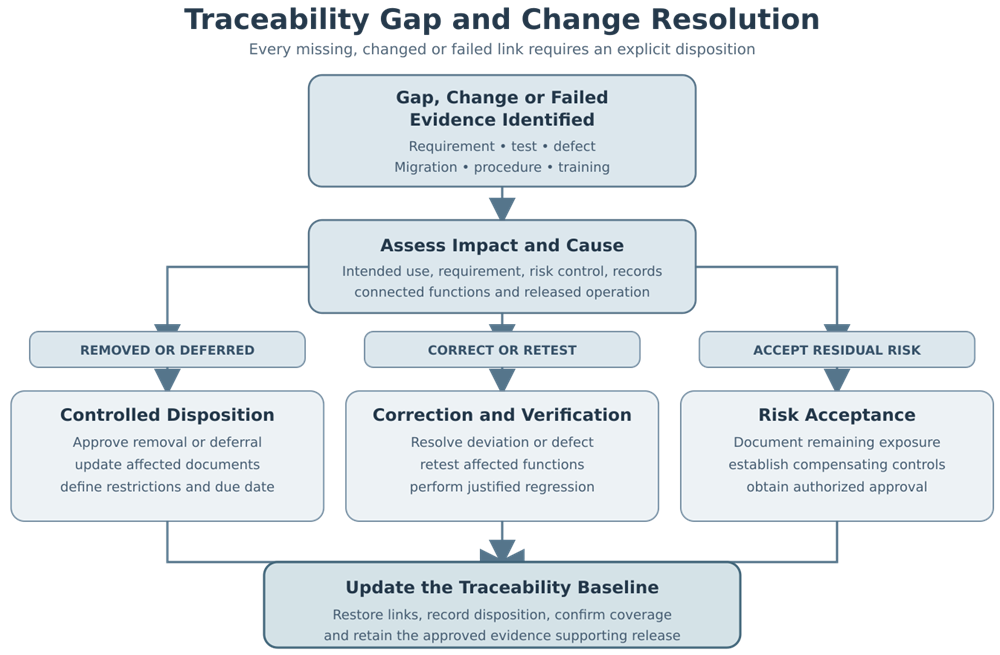

9. Use in Change Control
Traceability is a key tool for impact assessment. When changes occur, the traceability matrix is used to:
- identify affected requirements
- determine impacted specifications
- identify test cases requiring re-execution
This supports controlled and efficient revalidation.
10. Common Deficiencies
Typical traceability issues include:
- missing links between requirements and test cases
- verly high-level mapping without testable detail
- duplication or conflicting mappings
- failure to update traceability after changes
- test cases not clearly tied to requirements
These deficiencies lead to incomplete validation and audit findings.
11. Approval and Control
The traceability matrix must be reviewed and approved as part of validation documentation. This includes:
- confirmation of completeness and accuracy
- alignment with URS and specifications
- version control and change management
Approved traceability provides objective evidence that validation is complete and controlled.
