RABS and Isolator Glove Cleaning, Disinfection, and Integrity

Introduction

Barrier gloves are critical components of Restricted Access Barrier Systems (RABS) and isolators, providing the only physical interface between operators and the ISO 5 processing environment. Every intervention, material transfer, equipment adjustment, and aseptic manipulation performed within the enclosure depends on the integrity of the glove system.

Unlike disposable sterile gloves worn by operators, barrier gloves are permanently mounted within the enclosure and repeatedly exposed to mechanical stress, cleaning agents, disinfectants, vaporized hydrogen peroxide (VHP) decontamination cycles, and routine manufacturing activities. Over time, these conditions may affect glove integrity and performance.

Maintaining barrier gloves requires more than routine cleaning. An effective glove management program includes appropriate material selection, validated cleaning and disinfection procedures, routine integrity testing, periodic inspection, preventive maintenance, and replacement based on established acceptance criteria. Together, these activities help maintain the qualified state of the barrier system and support the facility’s Contamination Control Strategy (CCS).

The barrier glove assembly consists of the glove, glove port, retaining ring, sealing mechanism, and associated mounting hardware. These components work together to form a leak-tight barrier between the operator and the critical processing environment. Proper installation and maintenance of the complete assembly are essential for reliable long-term performance.

Cross-sectional diagram of a RABS and isolator glove assembly showing the glove, glove port, retaining ring, sealing gasket, and enclosure wall forming the sterile barrier.

Barrier Glove Design

Barrier gloves are permanently mounted within glove ports installed in RABS and isolators. The complete glove assembly consists of the glove material, cuff, retaining ring, glove port, and sealing mechanism. Together, these components create a leak-tight barrier that allows operators to perform aseptic manipulations without directly entering the critical processing environment.

Several elastomeric materials are commonly used for barrier gloves, including chlorosulfonated polyethylene (CSM), EPDM, butyl rubber, neoprene, and nitrile. Material selection depends on the intended application and should consider flexibility, chemical resistance, durability, operator comfort, and compatibility with cleaning agents, disinfectants, and VHP decontamination.

Because gloves undergo continuous flexing during routine operation, they experience considerably greater mechanical stress than the rigid enclosure components. Their design must therefore balance operator ergonomics with long-term durability while maintaining barrier integrity throughout the expected service life.

Sources of Contamination and Glove Damage

Barrier gloves are continuously exposed to conditions that may either contaminate their surfaces or degrade the glove material. Although these processes often occur simultaneously, they represent different risks and require different control measures.

Surface contamination may result from:

  • Contact with product containers and components
  • Material transfer activities
  • Equipment manipulation
  • Product residues
  • Environmental particles
  • Residual cleaning or disinfecting agents
  • Routine operator contact

Routine cleaning and disinfection are intended to remove or reduce these contaminants.

Material degradation develops over time through repeated mechanical and chemical exposure. Common causes include:

  • Continuous flexing and stretching
  • Abrasion against equipment or glove ports
  • Mechanical fatigue
  • Repeated VHP decontamination cycles
  • Exposure to alcohols and sporicidal disinfectants
  • Chemical attack from process materials
  • Natural aging of elastomeric materials

Unlike surface contamination, material degradation cannot be corrected by cleaning and eventually requires glove replacement.

Cleaning and Disinfection

Routine cleaning and disinfection maintain the microbiological cleanliness of barrier gloves and reduce the potential for contamination during aseptic operations.

Cleaning removes visible contamination such as product residues, dust, and disinfectant residues that may interfere with the effectiveness of subsequent disinfection. Disinfection reduces the microbial population remaining on the glove surface after cleaning.

Procedures should define:

  • Approved cleaning agents
  • Approved disinfectants
  • Wiping technique
  • Required contact times
  • Drying requirements
  • Cleaning frequency
  • Required documentation

Particular attention should be given to fingertips, palms, glove cuffs, and areas surrounding the glove ports, where contamination is most likely to accumulate.

Only cleaning agents and disinfectants demonstrated to be compatible with the glove material should be used. Excessive exposure to aggressive chemicals may accelerate deterioration of elastomeric materials and reduce glove service life.

Cleaning and disinfection procedures should be validated to demonstrate effective residue removal, microbial reduction, repeatable operator performance, and compatibility with the selected glove materials.

Glove Integrity

Glove integrity is the ability of the complete glove assembly—including the glove material, seams, cuffs, retaining rings, glove ports, and sealing interfaces—to maintain a continuous physical barrier between personnel and the aseptic processing environment.

Loss of glove integrity may occur through:

  • Pinholes
  • Tears
  • Surface cracks
  • Abrasion
  • Seam failures
  • Cuff damage
  • Improper installation
  • Failed glove-port seals
  • Material degradation

Even small defects may compromise barrier performance and increase the risk of contamination. Because many defects are not readily visible during routine operation, glove integrity must be verified through established inspection and testing procedures.

Glove Integrity Testing

Routine integrity testing confirms that barrier gloves continue to provide an effective physical barrier throughout their operational service life. While cleaning and disinfection maintain the microbiological cleanliness of glove surfaces, integrity testing verifies that the complete glove assembly remains free of defects that could compromise the separation between the operator and the aseptic processing environment.

Integrity testing is typically performed:

  • Following installation of new gloves
  • Following glove replacement
  • After maintenance activities affecting the glove assembly
  • Following suspected mechanical damage
  • At predetermined intervals established by facility procedures
  • Prior to returning the barrier system to service, when required

The testing frequency should be established through a documented risk assessment considering the barrier system design, manufacturing schedule, glove material, historical performance, manufacturer recommendations, and applicable regulatory requirements.

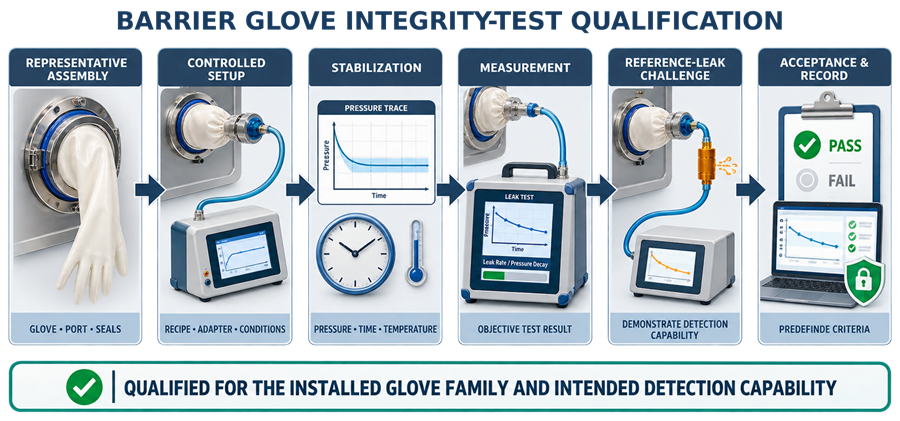

Several integrity testing methods are commonly used to verify barrier performance:

  • Visual inspection is the simplest method and is performed routinely to identify obvious defects such as cuts, abrasions, discoloration, cracks, loose cuffs, improper installation, or other visible signs of deterioration.
  • Inflation testing involves pressurizing the glove with air and observing for pressure loss or visible leakage. This method is commonly used to detect gross defects such as tears, punctures, damaged seams, or improperly installed glove assemblies.
  • Pressure decay testing measures the ability of an inflated glove to maintain a specified pressure over a defined period. A decrease in pressure beyond established acceptance criteria indicates leakage and loss of barrier integrity. This method is widely used because it provides objective and repeatable results.
  • Automated glove integrity testing employs dedicated testing equipment that performs standardized pressure or flow-based measurements with minimal operator intervention. These systems provide highly sensitive leak detection, automatic evaluation against predefined acceptance criteria, and electronic documentation of test results, making them well suited for routine GMP operations.

Testing procedures should establish acceptance criteria, testing frequency, documentation requirements, investigation of failures, and corrective actions.

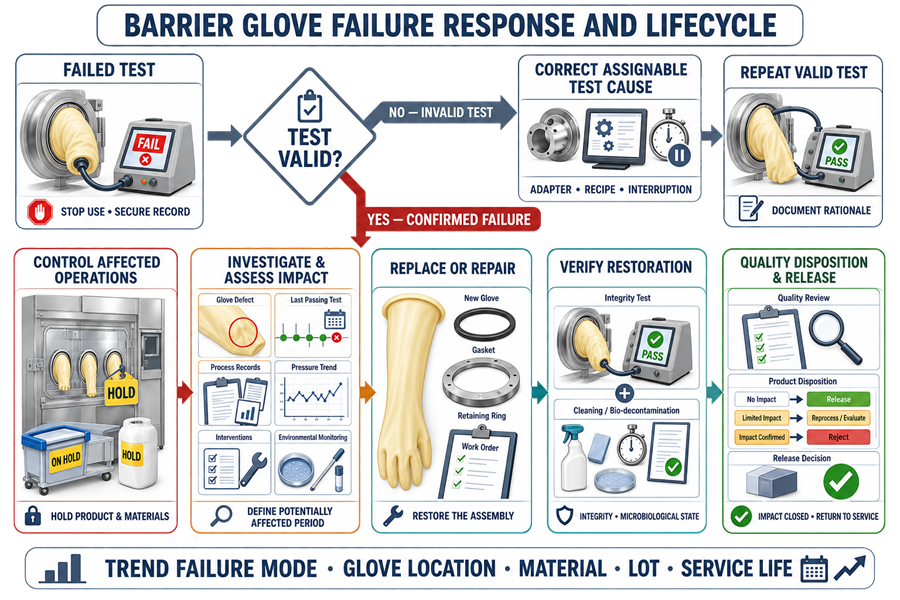

Any glove failing an integrity test should be removed from service immediately. The cause of failure should be investigated, the potential impact on manufacturing operations assessed, and the replacement glove successfully tested before the barrier system is returned to service.

Qualification of Barrier Gloves

Barrier gloves are qualified as part of the overall qualification of the RABS or isolator rather than as independent equipment. Qualification demonstrates that the installed glove assemblies perform their intended function while maintaining barrier integrity during routine manufacturing operations and anticipated interventions.

Qualification activities typically demonstrate:

  • Proper installation of glove assemblies
  • Leak-tight glove-port seals
  • Compatibility of glove materials with approved cleaning agents and disinfectants
  • Compatibility with repeated VHP decontamination cycles
  • Adequate resistance to routine operator movement and mechanical stress
  • Effectiveness of the selected glove integrity testing method
  • Maintenance of barrier performance following routine cleaning and decontamination

The qualified state should be maintained through routine cleaning, integrity testing, periodic inspection, preventive maintenance, and scheduled glove replacement.

Significant changes to glove materials, glove-port assemblies, cleaning procedures, decontamination processes, or integrity testing methods should be evaluated through the facility’s change control process to determine whether requalification of the barrier system is necessary.

Inspection, Maintenance, and Replacement

Routine inspection provides early detection of glove deterioration before barrier performance is compromised.

Visual inspections should be performed before production, following cleaning and decontamination activities, after maintenance interventions, and whenever glove damage is suspected. Inspections should evaluate the condition of the glove material, seams, cuffs, retaining rings, and glove-port interfaces.

Barrier gloves have a finite service life and should be replaced according to documented procedures based on factors such as manufacturer recommendations, historical performance, integrity test results, number of decontamination cycles, production campaigns, or evidence of material deterioration.

Trending inspection findings and integrity testing results may identify recurring failure patterns, allowing preventive replacement before barrier integrity is affected.

Regulatory Expectations

Current GMP guidance recognizes barrier gloves as critical components of contamination control systems used in aseptic manufacturing. Manufacturers are expected to establish documented procedures governing glove selection, cleaning and disinfection, integrity testing, routine inspection, preventive maintenance, replacement, investigation of failures, and change control.

These activities should be incorporated into the facility’s Contamination Control Strategy (CCS) and supported by appropriate documentation demonstrating that barrier gloves continue to provide effective protection throughout routine manufacturing operations.

Best Practices

An effective barrier glove program should include:

  • Selection of glove materials compatible with process chemicals, cleaning agents, and VHP decontamination.
  • Validated cleaning and disinfection procedures that demonstrate microbial reduction and material compatibility.
  • Routine integrity testing using qualified and documented testing methods.
  • Scheduled visual inspections before and after manufacturing operations.
  • Preventive maintenance and replacement based on documented service-life criteria.
  • Trending of integrity test results and inspection findings to identify recurring defects.
  • Evaluation of changes through the facility’s change control system.
  • Complete documentation supporting the continued qualified state of the barrier system.

A systematic approach to cleaning, inspection, integrity testing, qualification, and replacement ensures that barrier gloves continue to function as an effective contamination control measure and maintain the integrity of RABS and isolator systems throughout aseptic processing and fill-finish operations.
