Capsule Filling Equipment Qualification

Capsule filling equipment separates empty two-piece capsule shells, meters a controlled quantity of formulation into each capsule body, closes the capsule, and transfers the completed dosage unit to downstream inspection or packaging.

Capsules may be filled with powders, granules, pellets, mini-tablets, nonaqueous liquids, semisolids, or combinations of these materials. The selected dosing system must be appropriate for the formulation, capsule size, required fill quantity, production rate, containment needs, and product-quality requirements.

Equipment qualification demonstrates that the capsule filler is properly designed, installed, and capable of operating throughout its approved ranges. It does not establish that a commercial formulation consistently meets fill-weight, content-uniformity, dissolution, or finished-capsule requirements. Those conclusions require product-specific process development, PPQ, and continued process verification.

Purpose and scope

This article addresses:

Manual, semi-automatic, and automatic hard-capsule filling equipment
Two-piece capsule-shell handling
Capsule orientation, separation, filling, closing, and discharge
Dosator, tamping-pin, auger, pellet, mini-tablet, and liquid dosing systems
Material feeding and powder-bed control
Fill-weight monitoring
Capsule integrity, locking, and rejection
Containment, cleaning, and changeover
Instrumentation, automation, and electronic records
URS, DQ, supplier documentation, FAT, SAT, IQ, OQ, and equipment-level PQ
Product-specific PPQ and sampling
Calibration, maintenance, change control, periodic review, and requalification

The article does not address soft-gelatin encapsulation equipment. Softgel manufacture uses a different shell-formation, fill, sealing, drying, and control process.

Position within solid dosage manufacturing

Capsule filling normally follows formulation preparation and final blending.

Upstream operations may include:

After filling, capsules may pass through:

Capsule polishing
Dedusting
Metal detection
In-process inspection and reject systems
Banding or sealing where required
Checkweighing
Bottling or blister packaging

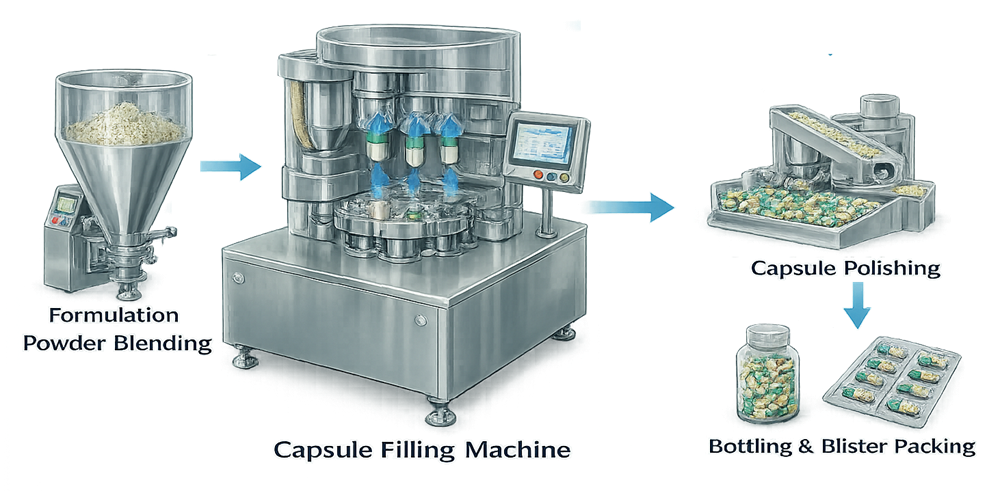

The illustration below shows one representative capsule-manufacturing sequence from formulation preparation through filling, polishing, and packaging.

Pharmaceutical capsule manufacturing sequence showing powder blending, capsule filling, polishing, and bottling or blister packaging. — Integration of capsule filling with upstream formulation preparation and downstream capsule handling.

Material transfer, capsule handling, inspection, and reject interfaces should be included within the qualification boundary when they can affect capsule identity, fill quantity, product containment, or batch accountability.

Capsule filling equipment types

Manual and semi-automatic fillers

Manual and semi-automatic fillers are generally used for:

Formulation development
Clinical or pilot batches
Small-volume production
Product trials
Specialized dosage forms

Operator actions may include capsule loading, separation, powder spreading, tamping, closing, inspection, and unloading.

Qualification should address the functions performed by the equipment and the controls applied to operator-dependent steps. Manual operation does not eliminate the need for suitable equipment, controlled procedures, cleaning, line clearance, reconciliation, and documented verification.

Automatic capsule fillers

Automatic capsule fillers perform sequential capsule handling and dosing through an indexing or continuously operating mechanical platform.

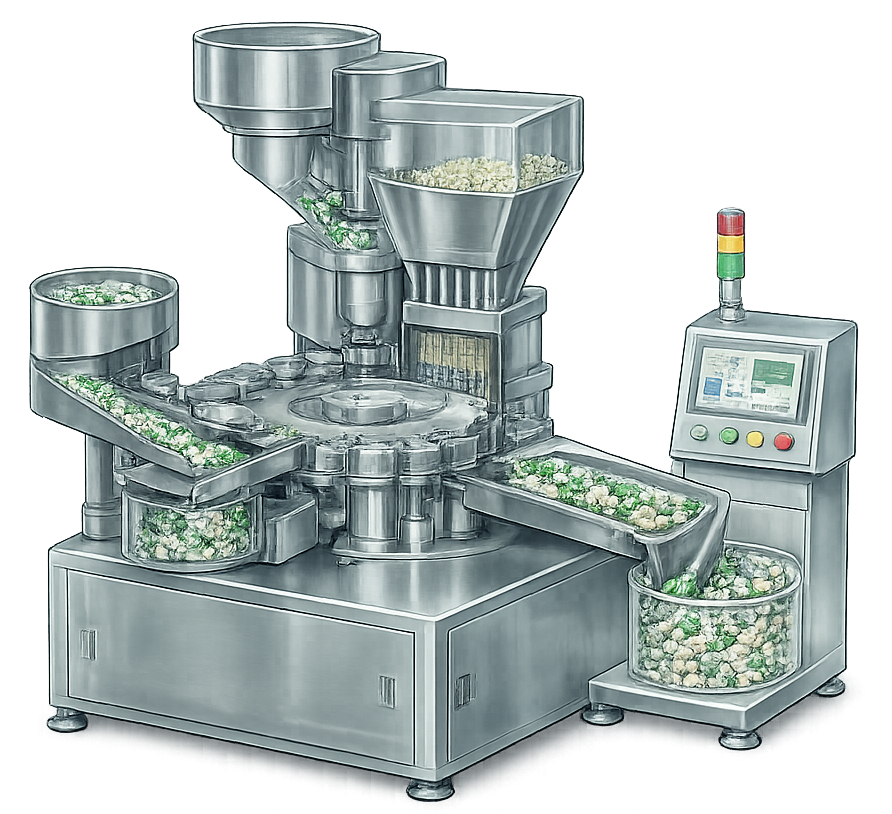

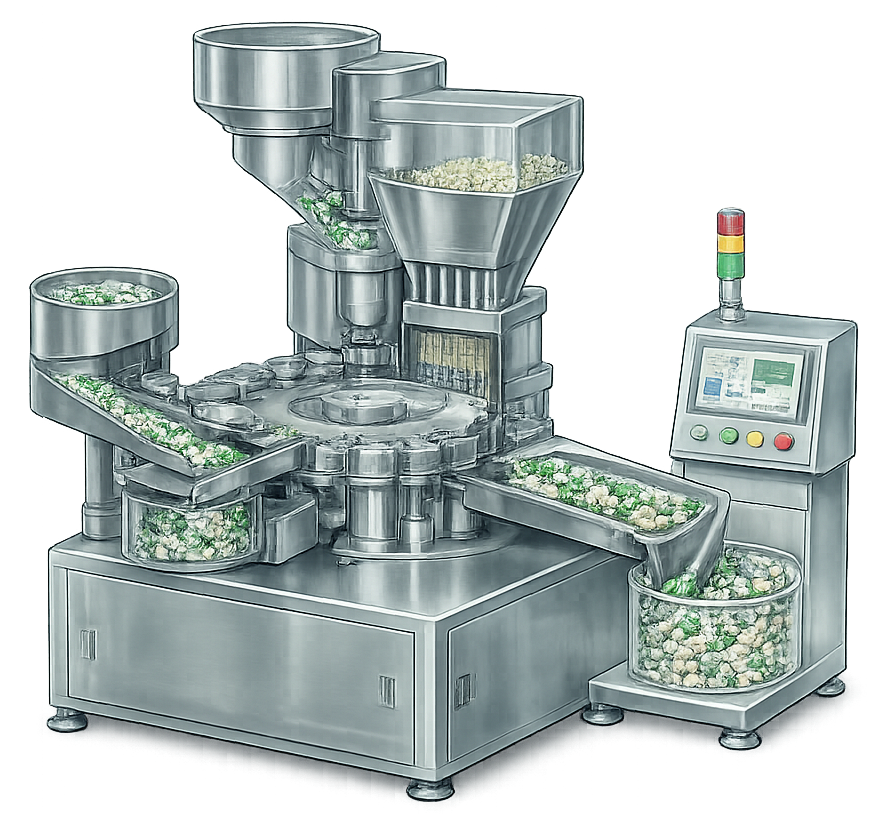

The illustration below shows a representative automatic capsule-filling machine with capsule feeding, product dosing, closing, discharge, and control assemblies.

Automatic pharmaceutical capsule-filling machine with capsule hopper, product hopper, rotary stations, discharge, and control panel. — Automatic rotary capsule filler used for capsule orientation, separation, dosing, closing, and discharge.

Automatic systems may include:

Empty-capsule hopper
Capsule rectifier and orientation mechanism
Upper and lower segment assemblies
Vacuum separation
Dosing station
Powder or pellet hopper
Product-level controls
Capsule closing and locking station
Capsule ejection
Reject gate
Product recovery
Dust extraction
Capsule sampler
Weight-monitoring system
Control system
Downstream polisher, deduster, metal detector, or checkweigher

Production capability depends on machine design, capsule size, dosing mechanism, formulation properties, number of dosing stations, machine speed, and downstream equipment capacity.

Capsule filling process sequence

A typical automatic filling cycle includes:

Empty capsules enter the machine hopper.
Capsules are oriented with the cap and body in the required position.
Capsules enter the machine segments.
Vacuum or mechanical action separates the cap from the body.
The cap remains retained while the body moves to the dosing station.
Formulation is metered into the capsule body.
Filled bodies and caps are realigned.
The capsule is closed or locked.
Incorrectly processed capsules are rejected.
Accepted capsules are discharged.
Capsules move to polishing, inspection, metal detection, or packaging.

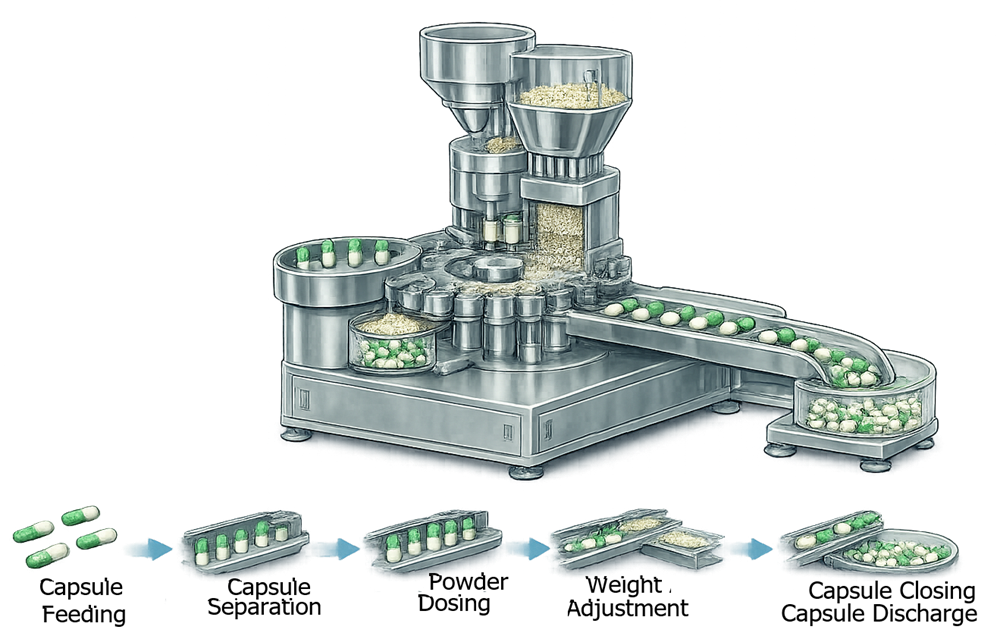

The illustration below presents the principal operations from empty-capsule feeding through filled-capsule discharge.

Capsule-filling sequence showing capsule feeding, separation, powder dosing, weight adjustment, closing, and discharge. — Principal operations performed by an automatic hard-capsule filling machine.

The actual sequence may include multiple dosing stations, capsule-presence checks, fill verification, tamping stages, cleaning stations, weight feedback, reject confirmation, or capsule banding.

Two-piece capsule-shell design

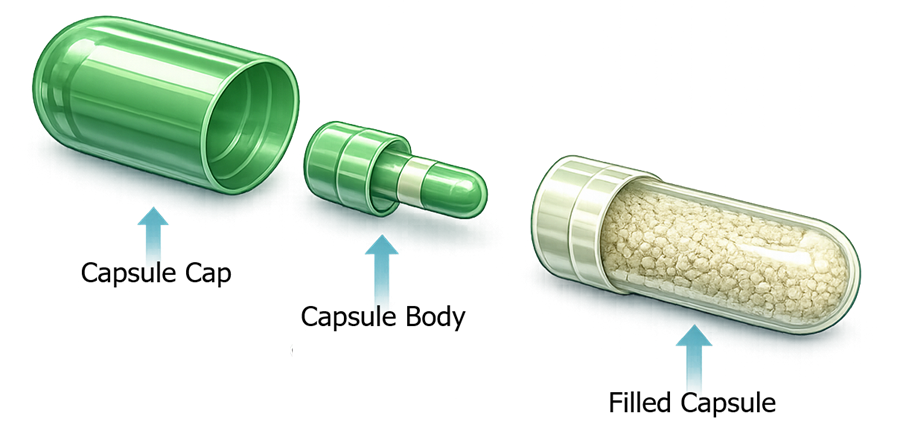

A hard capsule consists of a longer body and a shorter cap. The body receives the formulation, while the cap closes and locks over the body. The illustration below identifies the cap, body, and assembled filled capsule.

Two-piece pharmaceutical capsule showing separate capsule cap, capsule body, and assembled powder-filled capsule. — Cap and body components of a two-piece hard pharmaceutical capsule.

Capsule shells may be manufactured from gelatin, hydroxypropyl methylcellulose, or another suitable material. Shell characteristics that can affect machine operation include:

Capsule size
Dimensional tolerances
Shell-wall thickness
Moisture content
Brittleness
Elasticity
Static charge
Cap-to-body fit
Locking-ring geometry
Surface treatment
Supplier and manufacturing lot

Capsule-shell storage and handling conditions should be controlled. Low humidity may increase brittleness, while excessive humidity may soften shells or alter handling and separation.

Equipment adjustment cannot fully compensate for shell material that is outside approved dimensional or physical requirements.

Capsule orientation and feeding

The capsule-feeding system transfers empty capsules from the hopper to the orientation mechanism.

The system should provide:

Controlled capsule supply
Correct cap-and-body orientation
Prevention of capsule inversion
Minimal shell damage
Removal or rejection of malformed capsules
Prevention of excessive capsule accumulation
Controlled response to low capsule level
Access for cleaning and inspection

Capsule dust, static charge, dimensional variation, deformed shells, or unsuitable environmental conditions may interfere with feeding and orientation.

Capsule separation

At the separation station, capsule bodies and caps are positioned in upper and lower segment pockets. Vacuum or mechanical movement separates the components so the body can receive the formulation.

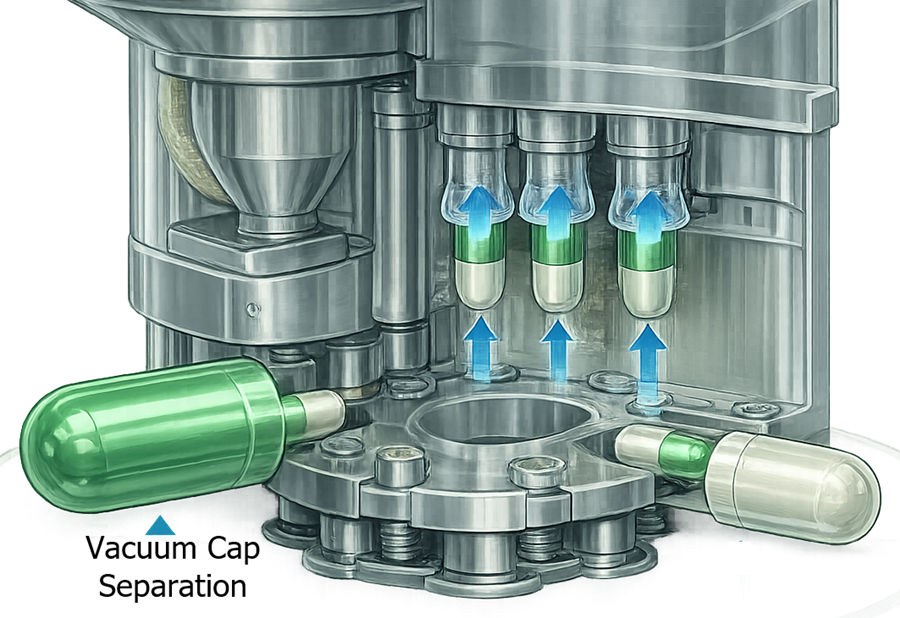

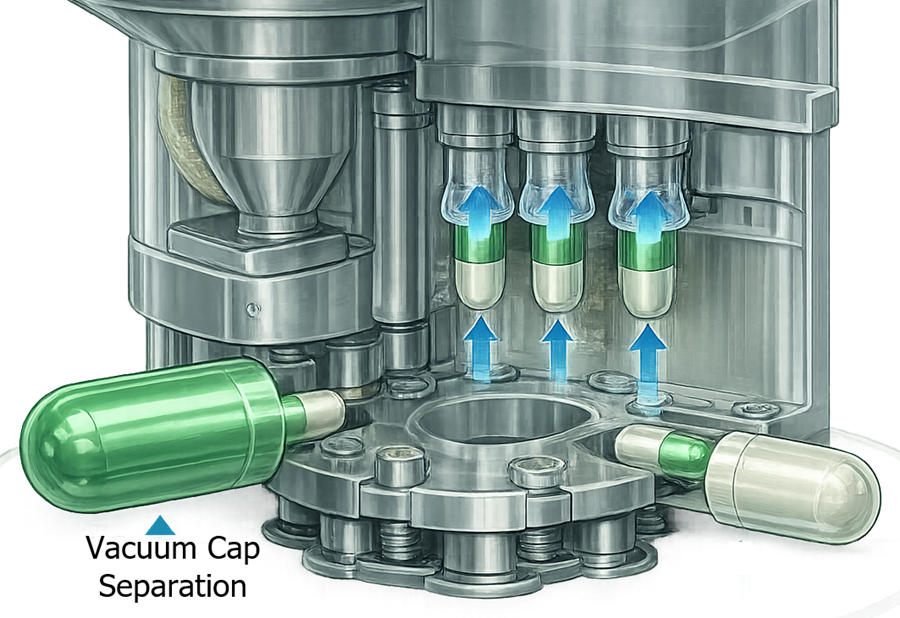

The illustration below shows vacuum-assisted cap separation while the capsule body remains in the lower segment.

Automatic capsule-filling separation station showing vacuum lifting capsule caps while bodies remain in lower segment pockets. — Vacuum-assisted separation of capsule caps and bodies before filling.

Potentially important conditions include:

Separation vacuum
Vacuum timing
Segment alignment
Capsule-pocket dimensions
Capsule seating
Upper-segment movement
Lower-segment retention
Capsule-shell condition
Machine speed

Failure to separate may result in an empty, damaged, or improperly processed capsule. The machine should detect or reject unseparated capsules where required by the control strategy.

Vacuum used directly at capsule-handling locations should be assessed for cleanliness, filtration, and prevention of product or shell contamination.

Dosing systems

The dosing mechanism should be selected according to formulation properties, dose quantity, capsule size, required accuracy, production rate, and sensitivity to compression or shear.

Dosator systems

A dosator is a hollow dosing tube that enters a powder bed and forms a powder plug. A piston controls plug length or compaction and ejects the plug into the capsule body.

Potentially important variables include:

Dosator internal diameter
Powder-bed height
Dosator penetration
Piston position
Plug length
Dosing vacuum where used
Powder density
Dosing speed
Powder replenishment
Product scraper or leveling system

Tamping-pin systems

A tamping-pin system fills cavities within a dosing disc. Powder is compacted through one or more tamping stages before the plug is transferred into the capsule body. Potentially important variables include:

Dosing-disc thickness
Dosing-cavity diameter
Powder-bed height
Tamping-pin penetration
Number of tamping stages
Tamping force or displacement
Ejection-pin position
Machine speed
Product replenishment

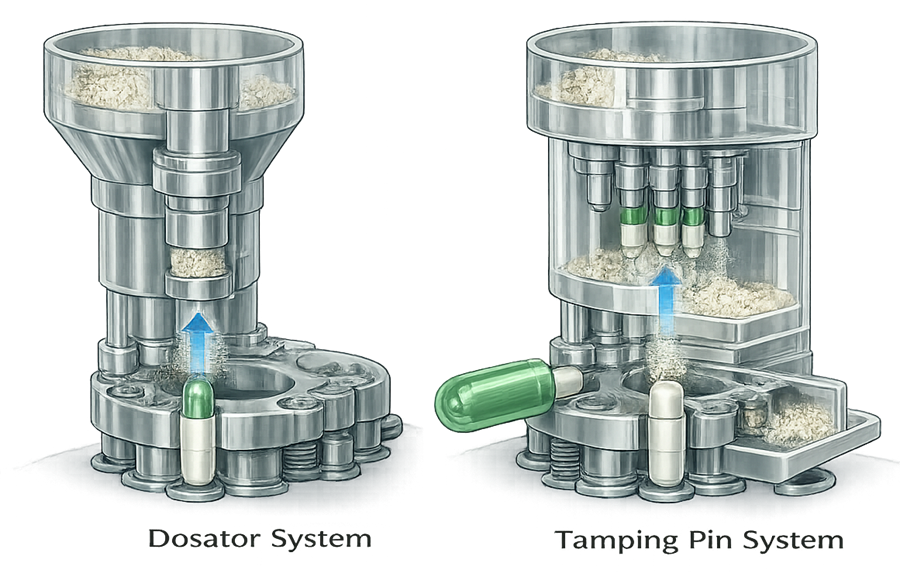

The illustration below compares dosator and tamping-pin mechanisms used to form and transfer powder plugs.

Comparison of dosator and tamping-pin capsule dosing systems used to form and transfer powder plugs into capsule bodies. — Dosator and tamping-pin mechanisms used for pharmaceutical powder capsule filling.

Equal plug volume does not guarantee equal fill weight when powder density, flow, moisture, aeration, or compaction behavior changes.

Auger dosing

Auger systems meter powder through controlled screw rotation. Fill quantity may depend on:

Auger geometry
Auger speed or number of revolutions
Hopper level
Powder density
Feed consistency
Capsule position
Cutoff or transfer timing

Auger dosing may be useful for certain low-dose or poorly flowing powders but can introduce shear, heat, segregation, or retention risks.

Pellet and mini-tablet dosing

Pellets, beads, or mini-tablets may be filled by volumetric chambers, counting devices, dosing slides, or dedicated transfer mechanisms. Controls may include:

Pellet or mini-tablet size
Count
Volumetric setting
Feed rate
Level
Detection of blockage
Prevention of breakage
Segregation control
Multiple-component dosing sequence

Where more than one material is filled into the same capsule, each dosing subsystem should be identified and controlled separately.

Liquid and semisolid dosing

Nonaqueous liquids or semisolids may be filled using pumps, pistons, valves, heated hoppers, or temperature-controlled lines. Important variables may include:

Fill volume or mass
Product temperature
Viscosity
Pump displacement
Dosing time
Nozzle position
Drip prevention
Line pressure
Hopper agitation
Capsule compatibility

Liquid-filled hard capsules may require banding or sealing. The filling and sealing boundaries should be defined and qualified according to their intended functions.

Material feeding and powder-bed control

The dosing system depends on controlled product delivery. Relevant controls may include:

Hopper level
Powder-bed height
Agitator speed
Product replenishment
Feed-screw speed
Vacuum transfer
Material residence time
Powder conditioning
Electrostatic control
Dust extraction

Material properties affecting filling include:

Particle-size distribution
Bulk and tapped density
Flowability
Cohesion
Moisture
Electrostatic tendency
Lubrication
Compressibility
Segregation tendency

An automatic filler cannot correct an inadequately blended or segregated formulation. Material transfer, hopper residence, vibration, and feeder operation must not cause unacceptable changes in composition.

Capsule closing and locking

After dosing, the capsule body and cap are realigned and pressed together. The closing system should provide:

Correct cap-and-body alignment
Controlled closing displacement
Consistent lock length
Prevention of shell splitting
Prevention of telescoping
Detection or rejection of missing caps
Minimal powder contamination at the joint

Excess material, powder on the capsule rim, damaged shell components, incorrect closing position, or segment misalignment may prevent proper locking.

Lock length or overall capsule length may be monitored directly or verified through periodic measurements.

Capsule discharge and downstream handling

Filled capsules are ejected from the segments and transferred to downstream equipment. The discharge path should prevent:

Capsule damage
Accepted and rejected capsule mixing
Uncontrolled accumulation
Product loss
Cross-contamination
Incorrect batch transfer
Excessive drop height
Excessive vibration

Downstream equipment may include:

Capsule polisher
Deduster
Metal detector
Checkweigher
Vision-inspection system
Banding or sealing equipment
Packaging line

Interface testing should verify equipment sequencing, permissives, accumulation control, reject handling, communication, and response to downstream stoppage.

Critical process parameters and equipment responses

Parameter or condition	Equipment function	Potential process or product response
Machine speed	Establishes production rate and station residence time	Feeding, separation, dosing, closing, defects
Product-hopper level	Maintains material supply	Dosing consistency
Powder-bed height	Establishes dosator or tamping feed condition	Plug mass and fill weight
Dosator penetration	Establishes collected powder volume and compaction	Fill weight and plug structure
Piston position	Controls plug formation and discharge	Fill weight and transfer
Tamping-pin depth	Controls plug compaction and volume	Fill weight and plug density
Dosing-disc configuration	Establishes dosing-cavity volume	Fill quantity
Auger speed or revolutions	Controls powder delivery	Fill weight
Separation vacuum	Separates capsule cap and body	Separation failures or shell damage
Closing position or force	Locks capsule cap and body	Capsule integrity and lock length
Capsule-shell condition	Supports handling, separation, and closing	Splits, dents, telescoping, failures
Dust extraction	Removes airborne powder	Containment, product loss, dosing behavior

Product-specific parameter ranges should be established through process development. Equipment qualification verifies that the machine can achieve, control, and record the assigned ranges.

Fill-weight control

Capsule fill weight may be controlled through:

Dosing volume
Dosator penetration
Piston position
Tamping-pin position
Powder-bed height
Auger revolutions
Pellet count
Pump displacement
Automated weight feedback
Operator adjustment

Fill weight is influenced by both machine settings and formulation properties. A fixed dosing setting may not produce a constant mass when bulk density, moisture, flow, or aeration changes.

Automatic adjustment should be limited and controlled. Frequent corrections may indicate unstable powder feed, segregation, capsule-shell variation, worn dosing parts, or inappropriate process settings.

Weight measurement and checkweighing

Capsule weight may be assessed by:

Periodic net-fill-weight testing
Sampled gross-capsule weighing
Empty-shell tare determination
Statistical shell-weight correction
Automated sample weighing
In-line or at-line checkweighing
One-hundred-percent capsule weighing where supported

Gross filled-capsule weight includes both shell and formulation. Shell-weight variability can affect the accuracy of an inferred net fill weight.

The measurement strategy should define:

Whether gross or net weight is reported
How shell tare is determined
Number of capsules
Sampling frequency
Balance suitability
Calculation method
Adjustment logic
Alarm and reject limits
Handling of measurement failure
Data recording

A checkweigher should not be assumed to measure API content. It detects mass variation, not formulation composition.

Capsule-presence and process detection

Sensors may monitor:

Capsule supply
Correct orientation
Capsule presence in segment pockets
Separation
Cap presence
Body presence
Fill presence
Product level
Closing
Ejection
Reject-gate position
Discharge blockage

Detection capability should be challenged using defined failure conditions. Sensor response should be verified at representative machine speeds because available detection and rejection time may decrease as speed increases.

Automatic reject systems

Capsules may be rejected for:

Incorrect orientation
Failure to separate
Missing cap or body
Empty or underfilled condition
Gross weight outside limits
Closure failure
Damaged shell
Metal-detector signal
Machine startup or shutdown
Parameter adjustment
Process interruption
Operator command

Qualification should verify that:

Reject criteria are defined
Detection and reject timing are coordinated
The reject device actuates correctly
Rejected capsules reach the designated container
Rejected and accepted capsules cannot remix
Reject containers remain identified and secured
Reject events are recorded
Batch reconciliation remains possible

Challenge testing should include representative machine speeds and relevant transport delays.

Common capsule defects

Potential defects include:

Failure to separate
Empty capsule
Underfilled or overfilled capsule
Split cap or body
Dented or deformed shell
Telescoped capsule
Loose cap
Incomplete locking
Powder trapped at the joint
Scratched or contaminated shell
Pellet or mini-tablet damage
Liquid leakage
Incorrect capsule orientation
Missing cap or body

A defect should not automatically be assigned to one cause.

Defect	Possible contributors
Failure to separate	Low vacuum, segment misalignment, deformed shell, incorrect orientation
Fill-weight variation	Product-level change, density variation, worn dosing parts, speed variation
Split capsule	Brittle shell, misalignment, excessive closing force, damaged segments
Telescoping	Incorrect closing setup, shell variation, segment alignment
Loose cap	Insufficient closing displacement, incompatible shell components
Powder at joint	Overfill, poor plug transfer, powder buildup, static
Empty capsule	Dosing failure, missing plug, blocked transfer, detection failure
Pellet damage	Aggressive feed, narrow clearance, excessive mechanical force
Liquid leakage	Incorrect fill, shell incompatibility, poor sealing, temperature variation

Investigation should consider equipment, capsule shell, formulation, method, environment, measurement, and operator factors.

Containment and dust control

Powder capsule filling may generate dust during product charging, hopper replenishment, dosing, transfer, rejection, sampling, and cleaning.

Controls may include:

Closed product transfer
Contained hopper connection
Negative-pressure enclosure
Local dust extraction
Isolator or glovebox
Split butterfly valve
Safe-change filters
Closed reject collection
Wash-in-place systems
Contained component removal

Dust extraction must be balanced. Insufficient extraction may impair containment and machine operation. Excessive extraction may remove product or disturb the dosing powder bed.

The associated pharmaceutical powder containment and dust collection systems article addresses extraction architecture, airflow, filtration, monitoring, and qualification.

Hygienic design and cleaning

Product-contact and residue-retaining areas may include:

Product hopper
Feed screws and agitators
Dosators
Pistons
Tamping pins
Dosing disc
Pellet or mini-tablet channels
Liquid pumps and nozzles
Segment pockets
Capsule bodies
Closing station
Ejection components
Discharge chute
Reject system
Product-recovery containers
Dust-extraction interfaces

Cleaning design should support:

Safe access
Defined disassembly
Component identification
Visual inspection
Drainage and drying where wet cleaning is used
Correct reassembly
Prevention of cross-connection
Protection of cleaned components
Line clearance
Verification of change parts

Equipment qualification may verify cleaning functions, component removal, assembly checks, wash cycles, drainage, and drying. It does not replace the residue limits, sampling recovery, analytical capability, worst-case selection, and reproducibility required by the site’s cleaning validation approach.

Change parts and capsule-size conversion

Capsule-size changes may require replacement or adjustment of:

Orientation components
Segment assemblies
Dosators
Dosing discs
Tamping pins
Closing components
Transfer guides
Ejection parts
Sensors
Product-contact parts

Change-part control should address:

Part number
Capsule-size compatibility
Equipment compatibility
Clean status
Inspection status
Assembly instructions
Storage
Damage
Wear
Line-clearance verification

Qualification should confirm that approved capsule-size configurations can be assembled correctly and perform their intended functions.

Instrumentation and automation

Capsule-filling instrumentation may include:

Machine-speed measurement
Product-level sensors
Capsule-level sensors
Vacuum instruments
Position sensors
Motor-current monitoring
Weight-measurement systems
Pump or dosing-position sensors
Temperature sensors for liquid filling
Reject-position sensors
Dust-extraction instruments

Automated functions may include:

Recipe management
Machine-speed control
Dosing adjustment
Capsule-presence detection
Separation detection
Weight monitoring
Sampling
Rejection
Alarm management
Batch reporting
Electronic records

The computerized-system boundary should identify controllers, operator interfaces, drives, sensors, weight systems, databases, recipe functions, historians, and external interfaces.

Controls should address:

Authorized access
Approved recipes
Parameter limits
Manual-mode restrictions
Audit trails where applicable
Data accuracy
Time synchronization
Backup and recovery
Configuration management
Software changes
Interface verification

User requirements and design qualification

The URS should define measurable requirements for:

Intended formulation types
Capsule materials and sizes
Production-rate range
Dosing methods
Fill-quantity range
Powder, pellet, mini-tablet, or liquid capability
Capsule-separation method
Weight monitoring
Detection and rejection
Capsule closing
Containment
Cleaning
Change parts
Product-contact materials
Automation and electronic records
Downstream interfaces
Maintenance access
Supplier documentation

Design qualification should confirm that the selected equipment and supporting systems satisfy intended use and adequately control identified risks.

Supplier documentation, FAT, and SAT

Supplier documentation may include:

General arrangement drawings
Product-contact drawings
Change-part lists
Capsule-size configurations
Dosing-system specifications
Electrical drawings
Instrument lists
Functional specifications
Software and configuration documentation
Alarm and interlock lists
Reject logic
Cleaning instructions
Maintenance recommendations
Calibration procedures
Spare-parts lists
Operating manuals

Factory acceptance testing may verify:

Capsule feeding and orientation
Separation
Dosing-system operation
Closing
Ejection
Speed control
Recipes
Alarms and interlocks
Capsule detection
Weight monitoring
Reject functions
Data recording
Safety functions

Site acceptance testing should verify equipment condition after delivery and operation with installed utilities, vacuum, dust extraction, upstream product transfer, and downstream equipment.

Approved FAT results may support qualification when they remain applicable and traceable. Functions affected by shipment, installation, utilities, configuration, or site integration require site verification.

Installation qualification

Installation qualification should verify, as applicable:

Equipment identity and location
Mechanical installation
Approved capsule-size configuration
Product-contact components
Dosing system
Change parts
Capsule-feeding system
Vacuum system
Closing and ejection assemblies
Reject system
Guards and enclosures
Dust-extraction connection
Utilities
Instruments and calibration status
Control hardware
Software and firmware versions
Drawings and manuals
Cleaning and maintenance requirements

Installation discrepancies should be documented and assessed before release.

Operational qualification

Operational qualification should challenge the equipment throughout its approved operating ranges.

Testing may include:

Minimum and maximum machine speed
Capsule feeding and orientation
Capsule separation
Dosing adjustment range
Powder-bed or product-level control
Closing and locking
Capsule ejection
Sensor challenges
Weight-monitoring functions
Reject timing and destination
Change-part configurations
Alarm and interlock challenges
Guard switches
Emergency stopping
Manual and automatic modes
Recipe limits
Power-loss and restart behavior
Data recording
Interface communication

Product-specific content uniformity, dissolution, or commercial fill-weight criteria should not be assigned as generic equipment OQ acceptance criteria.

Equipment-level performance qualification

Equipment-level PQ demonstrates that the installed capsule filler can perform its intended equipment functions reproducibly under representative operating conditions. Testing may evaluate:

Sustained operation at representative rates
Approved capsule sizes
Representative minimum and maximum fill quantities
Capsule feeding and separation
Repeatable dosing
Closing and discharge
Weight-system operation
Detection and rejection
Product charging
Downstream equipment integration
Material recovery
Containment
Cleaning functionality
Repeated recipe execution

A suitable placebo, surrogate, or representative material may be used when it provides an appropriate dosing and handling challenge.

Equipment-level PQ does not demonstrate that a commercial formulation consistently produces capsules meeting product specifications. That conclusion requires product-specific PPQ.

Product-specific PPQ and sampling

Product-specific PPQ evaluates the integrated commercial process using the approved formulation, capsule shell, equipment configuration, operating strategy, analytical methods, and sampling plan. PPQ may evaluate:

Gross and net fill weight
Fill-weight variability
Content uniformity
Capsule integrity
Lock length
Appearance
Reject rate
Yield and reconciliation
Disintegration
Dissolution
Performance after hopper replenishment
Performance after interruption or restart

Sampling should represent meaningful periods and conditions throughout the filling run.

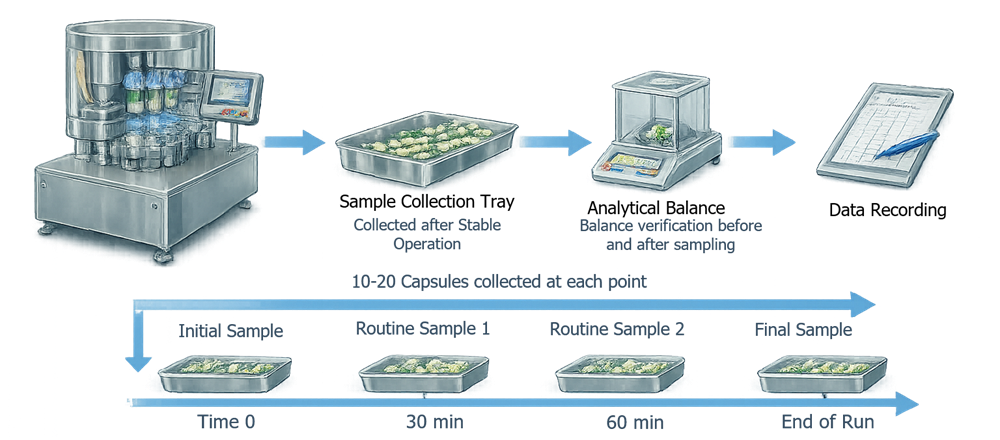

The illustration below shows a conceptual capsule-sampling timeline. The displayed sample quantities and intervals are examples only and must not be copied as universal requirements.

Conceptual capsule-filling PPQ sampling timeline showing startup, periodic, and end-of-run capsule weight measurements. — Example of time-distributed capsule sampling during product-specific filling PPQ.

A justified PPQ sampling plan may include:

Startup
Established operation
Defined time intervals
Product replenishment
Empty-capsule replenishment
Speed or parameter adjustment
Restart after interruption
Multiple dosing stations where relevant
End of batch
Early, middle, and late discharge

Sampling principles are addressed further in sampling plan and data collection strategy.

Equipment qualification versus process validation

Equipment qualification	Product-specific process validation
Confirms machine installation and configuration	Confirms the commercial formulation and capsule-filling process
Verifies feeding, separation, dosing, closing, sensing, and rejection	Establishes product-specific operating ranges
Challenges approved equipment ranges	Challenges material, capsule-shell, and process variability
Demonstrates mechanical and control repeatability	Demonstrates consistent capsule quality
May use suitable placebo or surrogate material	Uses justified commercial-process conditions
Does not establish content uniformity or dissolution	Evaluates applicable product attributes
Does not determine PPQ batch requirements	Establishes PPQ and continued-verification evidence

The broader lifecycle is addressed in PPQ strategy and batch definition and general principles of process validation.

Calibration and maintenance

Instruments used to control, record, test, or make GMP decisions should be included in the applicable calibration program and metrology control. Relevant devices may include:

Weight systems
Balances
Machine-speed indicators
Vacuum instruments
Position sensors
Level sensors
Temperature sensors
Pump or dosing-position devices
Timers
Checkweighers
Reference weights

Preventive maintenance should address:

Drive system
Indexing mechanism
Segment assemblies
Vacuum system
Capsule feeder and rectifier
Dosators and pistons
Tamping pins and dosing discs
Augers
Pumps and nozzles
Closing station
Ejection system
Reject device
Seals and gaskets
Guards
Dust-extraction connections

Broader principles are addressed in preventive maintenance and equipment reliability.

Common equipment failure modes

Failure mode	Potential effect	Typical detection or control
Capsule-feeding failure	Missing or incorrectly oriented capsule	Presence sensor, alarm, inspection
Inadequate separation vacuum	Unseparated or damaged capsule	Vacuum monitoring and reject challenge
Worn segment pockets	Misalignment, shell damage, separation failure	Inspection and dimensional control
Unstable powder-bed level	Fill-weight variation	Level control and alarm
Worn dosator or dosing disc	Fill-weight drift	Inspection, replacement limits, trending
Tamping-position drift	Plug-weight or density change	Position verification and setup control
Closing-station misalignment	Split, loose, or telescoped capsules	Setup verification and capsule inspection
Weight-system drift	Incorrect adjustment or disposition	Calibration and independent verification
Reject-gate failure	Nonconforming capsules enter accepted stream	Challenge testing and position confirmation
Excessive dust extraction	Product loss or disturbed dosing bed	Airflow balancing and limits
Wrong change parts	Capsule damage or dosing failure	Part identification and line clearance
Incorrect recipe	Operation outside approved conditions	Access control and recipe approval

Change control and requalification

Changes should be evaluated for effects on equipment qualification and the validated capsule-filling process.

Examples include:

New capsule size or material
New capsule supplier
New dosing system
New dosator, dosing disc, tamping pin, auger, or pump
Change-part replacement
New fill-quantity range
Capsule-separation modification
Weight-system replacement
Reject-system modification
Control-software change
Recipe modification
Hopper or product-transfer modification
Dust-extraction change
Cleaning-process change
Major repair
Equipment relocation

The impact assessment should determine whether the change requires:

Document revision
Calibration or functional testing
Targeted IQ or OQ
Equipment-level PQ
Capsule-handling studies
Dosing studies
Cleaning assessment
Product-development work
Additional PPQ or process validation

Requalification should focus on affected functions and risks rather than automatically repeating every original test.

Periodic review and continued verification

Periodic equipment review should evaluate:

Qualification status
Changes
Deviations
Alarms
Calibration
Maintenance
Change-part history
Dosing-component wear
Weight-system performance
Reject-system performance
Software and recipe status
Cleaning performance
Recurring failures
Supplier support
Obsolescence
Requalification decisions

Product continued verification should separately evaluate applicable process and quality trends, including fill weight, content uniformity, capsule defects, rejects, yield, disintegration, dissolution, and other relevant attributes.

Documentation and traceability

Lifecycle documentation should connect:

Intended use
User requirements
Design specifications
Risk assessments
Supplier documentation
FAT and SAT
IQ, OQ, and equipment-level PQ
Instruments and calibration
Change-part inventory
Automation configuration
Recipes
Detection and reject logic
Cleaning procedures
Maintenance
Training
Deviations
Change controls
Requalification decisions
Product-development studies
PPQ
Continued process verification

The documentation should distinguish evidence of capsule-filler capability from evidence validating the product-specific filling process.

Regulatory basis

21 CFR 211.63 requires equipment to be appropriately designed, adequately sized, and suitably located for intended use, cleaning, and maintenance.

21 CFR 211.67 establishes requirements for equipment cleaning, maintenance, written procedures, and records.

21 CFR 211.68 addresses automatic, mechanical, electronic, and computerized equipment, including calibration, inspection, checks, and system controls.

21 CFR 211.110 specifically identifies tablet or capsule weight variation and adequacy of mixing among the in-process controls used to assure batch uniformity and integrity.

FDA’s Process Validation: General Principles and Practices separates equipment qualification from process performance qualification and continued process verification.

Conclusion

Capsule filling equipment must provide controlled capsule feeding, orientation, separation, dosing, closing, discharge, detection, rejection, and data capture.

Qualification demonstrates that the installed machine can operate reproducibly throughout its approved equipment ranges. It does not establish product-specific dosing settings or prove that a commercial formulation consistently meets fill-weight, content-uniformity, dissolution, or finished-capsule requirements.

Product development, PPQ, and continued verification must demonstrate control of the integrated process from final blend transfer through filling, capsule closure, inspection, and downstream handling.
